    Electric Sintering Furnace Chitherm 1500 ordm C Hbf105-14 with Effective Chamber Dimensions 400*330*800mm and Electric Fuel

    I. Equipment Name and Model:
    HBF105-14 Sintering Furnace

    II. Technical Indicators and Basic Configuration
    2.1 Rated Temperature: 1300°C;
    2.2 Maximum Temperature: 1500°C;
    2.3 Effective Dimensions: 400×330×800mm (Width×Height×Depth);
    2.4 Supporting Device: Corundum-mullite supporting and firing plate;
    2.5 Detection Method: Reserved installation holes for thermocouples and temperature monitoring holes;
    2.6 Refractory Materials: Polycrystalline mullite products are selected for the inner layer, and ceramic fiber boards are used for auxiliary heat insulation in the outer layer;
    2.7 External Dimensions: 850×900×1200mm (Width×Height×Depth);
    2.8 External Color of the Equipment: Light gray.

    III. General Technical Description
    The equipment is mainly composed of the furnace body component, the furnace chamber component, and the trolley component. Figure 1 shows the schematic diagram of the equipment structure. The actual appearance shall be subject to the final product. The entire furnace body is assembled and welded by profiles, and the outer surface is treated with high-temperature plastic spraying; the hanging plate is bent and welded by high-quality sheet metal, and the outer surface is also treated with high-temperature plastic spraying.
    The entire exterior of the furnace body is protected by the hanging plate.

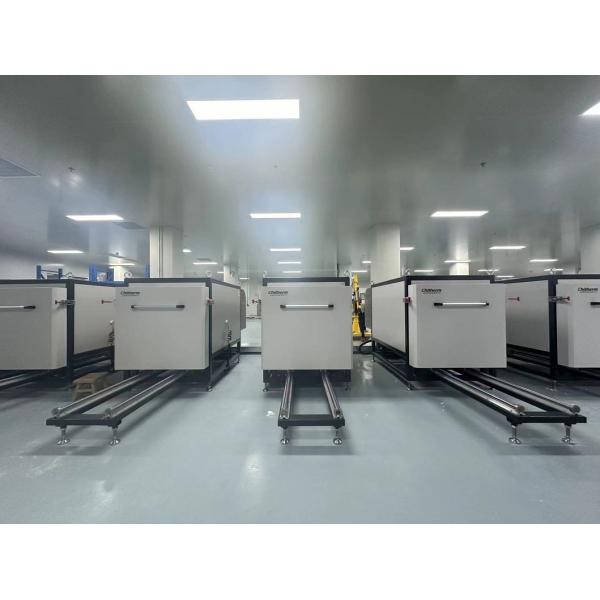

    Chitherm 1500º C Hbf105-14 Sintering Furnace
    Figure 1 Schematic Diagram of the Equipment Structure
    Chitherm 1500º C Hbf105-14 Sintering FurnaceChitherm 1500º C Hbf105-14 Sintering Furnace
